API 6D Trunnion Mounted Ball Valve: Deep Research, Features & Industrial Insights

 An API 6D Trunnion Mounted Ball Valve represents one of the most robust and reliable quarter-turn shut-off devices used in heavy industrial and pipeline applications — especially across oil, gas, petrochemical and LNG networks where safety, performance, and longevity are non-negotiable. Designed and certified under the American Petroleum Institute’s API 6D specification — the global benchmark for pipeline valves — these valves ensure high-pressure sealing, bi-directional isolation and operational efficiency in some of the harshest fluid service environments.

What Sets Trunnion Mounted Ball Valves Apart?

At the heart of a trunnion mounted design is the fixed ball, anchored securely by upper and lower trunnions (support shafts). Unlike floating ball valves — where the ball shifts under pressure — the trunnion configuration transfers thrust forces to bearings rather than seats, dramatically reducing friction, actuation torque, and seat wear.

This core structural advantage delivers:

• Lower operating torque, enabling manual or automated actuations with reduced energy and wear.

• High pressure capability suitable for ANSI Class 150 to Class 2500 (PN 16–420) services.

• Enhanced sealing reliability, even under extreme pressure and temperature variations.

These attributes make API 6D trunnion valves ideal for long-distance oil and gas transmission lines, high-pressure processing loops, subsea infrastructures, and critical isolation points in refineries.

Core Design & Standards Compliance

API 6D establishes stringent requirements for design, quality, testing and performance that API 6D trunnion valves adhere to. These include:

1. Engineering & Structural Standards

Built under API 6D with manufacturing often aligned to ASME B16.34 and API 608 for trunnion style ball valves, these valves meet global industry norms for dimensional accuracy, material traceability and safety certifications.

2. Pressure, Temperature & Sealing

API 6D specifies:

• Class 150–2500 pressure ratings (up to ~42 MPa working pressure).

• Wide temperature adaptability from cryogenic processes to high-temperature steam applications.

• Bi-directional zero leakage sealing in both directions, verified under API 598 testing protocols.

This ensures the valve closes tightly, resisting leakage and protecting pipeline integrity over long operational cycles.

Key Features That Drive Performance

API 6D trunnion mounted ball valves are engineered with a suite of performance-enhancing features:

• Double Block & Bleed (DBB) capability for safe isolation and maintenance operations without bypass leakage.

• Low-torque rotation, enabling efficient actuation with manual levers or electric/pneumatic actuators.

• Fire-safe and anti-static construction to prevent ignition and static charge under critical conditions.

• Blow-out proof stems and advanced sealing systems to enhance safety and longevity.

These features widely broaden the usability of trunnion valves across natural gas networks, subsea applications, LNG facilities, power plants, and refined product distribution systems.

Materials & Construction

The material selection for API 6D trunnion ball valves plays a significant role in durability and service compatibility. Commonly used materials include:

• Carbon steel and alloy steels for high pressure and high strength applications.

• Stainless steel or duplex/super duplex alloys for corrosion resistance, sour gas and subsea operations.

• Specialized trim and seat materials (e.g., PEEK, PTFE, Stellite® coatings) to endure abrasive or chemically aggressive environments.

This material flexibility ensures the valves not only withstand mechanical stress, but also resist sulfide stress corrosion cracking (SSC) and erosion in demanding fluid streams.

Applications Across Industries

Thanks to their structural stability and rigorous standards compliance, API 6D trunnion mounted ball valves are widely adopted in:

• Oil & gas transmission pipelines where high pressure and zero leakage are essential.

• Refining and petrochemical processing, supporting critical isolations and flow control.

• LNG production and export facilities, including cryogenic media handling.

• Power generation and industrial fluid systems requiring robust isolation under thermal cycling.

Their ability to maintain performance over extended duty cycles makes them a cornerstone in industrial fluid control networks globally.

Conclusion

In high-stakes environments where operational safety, reliability, and lifecycle economy are paramount, API 6D trunnion mounted ball valves stand out as a premier solution for pipeline and process control. Their advanced design mitigates wear, reduces actuation effort and delivers bi-directional sealing that meets the exacting demands of today’s industrial infrastructures.

Whether deployed across oil & gas transmission, petrochemical plants, or critical distribution systems, choosing a high-quality API 6D trunnion valve ensures that performance never compromises safety or efficiency.

Ball Valves for Chemical & Fertilizer Plants: Ensuring Reliable Flow and Safety

 Ball valves are indispensable in chemical and fertilizer processing, offering swift on/off control, tight shutoff, and minimal pressure drop. From handling corrosive acids to slurries of ammonium salts, the right Ball valve design and material selection can optimize efficiency, reduce maintenance, and ensure plant safety.

Why Ball Valves Are Ideal for Chemical & Fertilizer Service

• Quick Quarter-Turn Operation
  A simple 90° rotation of the ball delivers full flow or complete shutoff—crucial for emergency isolation and batch operations.
• Low Torque & Minimal Wear
  With smooth ball-and-seat contact, torque requirements remain low, extending actuator life and reducing actuation costs.
• Bi‐Directional Flow
  Symmetrical design allows flow in either direction without performance loss—a benefit in complex piping loops.
• Full‐Port Options
  Full‐bore balls maintain line size, preventing pressure drop and accumulation of particulates, which is vital when processing slurries or viscous fertilizer mixes.

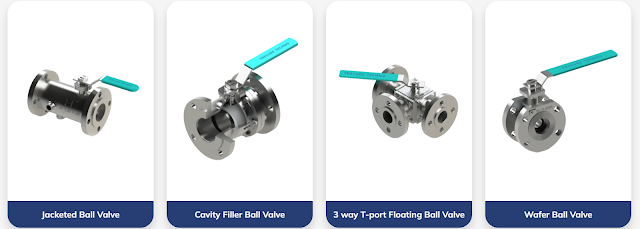

Common Ball Valve Types Used

Floating Ball Valves

Floating Ball valves feature a free ball that presses against the downstream seat under line pressure to seal. They’re suitable for pressures up to Class 600 and temperatures to 200 °C, handling light to moderate corrosives.

Trunnion‐Mounted Ball Valves

For high‐pressure (Class 600–2500) or large‐diameter applications, trunnion‐mounted designs fix the ball on top and bottom bearings. This minimizes ball movement, ensuring reliable sealing against dense slurry or high‐pressure ammonia.

Three‐Piece Split Body Valves

Three‐piece bodies allow easy maintenance without disturbing pipeline alignment. Ideal for frequent service in fertilizer plants, they enable in‐line seat or seal replacement, reducing downtime.

V‐Port & Multi‐Port Ball Valves

V‐port trims deliver precise flow control in feed ratios, while multi‐port (L‐ or T-patterns) valves manage blending or diversion—valuable for batching chemical additives.

Material & Seal Considerations

• Body Materials
  • Stainless Steel (SS 316/316L): General corrosion resistance, compatible with a wide range of acids and amines.
  • Duplex & Super Duplex: Superior strength and chloride resistance for concentrated fertilizers.
  • Carbon Steel with Linings: PTFE or PFA linings protect against harsh acids at lower cost.
• Seal & Seat Materials
  • PTFE: Universal chemical compatibility up to 200 °C.
  • Reinforced PTFE (RTFE): Improved wear resistance for abrasive slurries.
  • Metal Seats: Up to 500 °C and high‐pressure service; suitable where polymer seats degrade.
• Stem Seals
  Graphite‐filled packing or live-loaded PTFE seals prevent fugitive emissions of toxic or ammonia‐based vapors.

Selection Criteria for Optimum Performance

1. Process Fluid Properties
   Viscosity, solids content, and corrosiveness dictate valve type and seat material. Slurry service often requires oversized ports and hardened trims.
2. Operating Pressure & Temperature
   Match valve class (ANSI 150–2500) and seal materials to maximum process conditions, including surge scenarios.
3. Actuation Method
   • Manual: Handwheels suffice for infrequent isolation.
   • Pneumatic/Electric Actuators: Provide fast, remote operation and fail‐safe options critical in emergency shutdown systems.
   • Smart Positioners: Integrate diagnostics to predict maintenance needs.
4. Maintenance & Lifecycle Cost
   Evaluate ease of access to seats and seals. Three-piece valves or top‐entry designs reduce disassembly time and spare‐parts inventory.

Best Practices & Industry Standards

• Compliance: Ensure valves meet API 6D, ANSI B16.34, and ISO 17292 standards for Ball valves.
• Testing: Hydrostatic and shell tests per API 598 verify integrity before commissioning.
• Inspection: Implement regular walk-down inspections and fugitive emission monitoring to catch stem leaks early.

Conclusion

Selecting the appropriate Ball valve for chemical and fertilizer plants involves a careful balance of valve type, materials, actuation, and maintenance strategy. Floating and trunnion-mounted designs, paired with corrosion‐resistant alloys or polymer linings, ensure safe, efficient flow control—even under the harshest process conditions.

Contact Freture Techno Pvt. Ltd. for expert guidance and precision-engineered Ball valves tailored to your chemical and fertilizer processing needs.

Industrial Applications of Ball Valves

Ball valves find their wide application in critical industries due to the dependable shut-off, low operating torque, and durability they offer. Each industry has different operational challenges based on temperature, pressure, media characteristics, hygiene, and safety. If these aspects are seen from the perspective of mechanical engineering, the appropriateness of ball valves becomes clear. In this article, the application of ball valves in oil and gas, power generation, fertilizer production, food processing, pharmaceuticals, and general process industries is explained in detail.

Ball Valves for Oil and Gas Applications

Operational Requirements

Oil and gas systems put tremendous demands on valves, including high pressures, temperature variability, corrosive hydrocarbons, and abrasive contaminants. Upstream, midstream, and downstream operations in this industry require valves capable of handling rapid pressure fluctuations and continuous cycling.

Engineering Considerations

Mechanical engineers normally emphasize:

High-pressure carbon steel or alloy steel construction

Metal-seated designs for erosive services

Fire-safe certifications for compliance to safety

Anti-blowout stems to prevent external leakage

Compatibility with pneumatic or hydraulic automation

Ball valves are installed in many applications such as pipeline isolation, compressor stations, crude oil transfer lines, gas distribution networks, and refinery units.

Ball Valves in Power Plants

Service Conditions

Power plants operate at high temperatures and pressures, moving steam, condensate, cooling water, and fuel gases continuously. Equipment reliability is crucial in view of the fact that an unexpected failure can result in lengthy downtime and risk to safety.

Mechanical Selection Criteria

Ball valves in power plants are usually specified based on:

Alloy steel materials fit for handling high temperatures

Metal seats with carbide coatings for erosion resistance

Reduced-port or full-port configurations depending on flow requirements

Actuated systems for precision in the control of automation circuits

These are mostly applied in steam lines, boiler feed circuits, condensate recovery systems, and in pipelines of various auxiliary equipment.

Ball Valves in Fertiliser Manufacturing

Process Issues

Fertilizer production includes processes like ammonia synthesis, urea cycles, nitric acid plants, and other chemical-handling operations; most of these involve highly corrosive chemicals, high temperatures, and continuous reaction loops.

Engineering Focus Areas

To ensure safety and dependability, ball valves are usually specified with:

DUPLEX or SUPER DUPLEX - Corrosion-resistant materials

Anti-corrosion coatings for aggressive chemical environments

Robust sealing arrangements for high-pressure loops

Automation-ready designs for process control

Such features help protect the integrity of equipment operating continuously, as even minor leakage has an effect on product quality and plant safety.

Ball Valves in Food Processing

Hygiene and Sanitary Compliance

Food processing industries require very high hygiene and contamination-free operation. In media like dairy, beverages, oils, syrups, and cleaning solutions, valves are required to maintain purity without microbial growth.

Engineering Parameters

Ball valves for food-grade service normally feature:

SS316L stainless steel construction

Smoothened internal surfaces for hygienic flow pathways

PTFE or food-grade seat materials

CIP/SIP compatibility for sterilization cycles

Crevice-free designs that allow no residue accumulation

Specific engineering properties allow for the safe handling of consumable products while ensuring industry-specific quality standards.

Ball Valves in Pharmaceutical Industry

High-Purity Requirements

The pharmaceuticals industry deals with water-for-injection, purified water, solvents, and several high-purity chemicals. Contamination control is the most important aspect, similarly to regulatory compliance.

Mechanical Considerations

Pharmaceutical ball valves are generally selected with:

High-grade stainless steel and electropolished surfaces

PTFE or PEEK seats for chemical resistance

Dead-leg-free designs to support aseptic conditions

Compatibility with automated cleaning and sterilization systems

These valves maintain purity in production cycles while ensuring reliable flow isolation in critical lines.

Ball Valves in General Process Industries

Versatility in Operation

Ball valves are used in chemical processing, textile units, and paper mills, as well as in manufacturing plants due to their ease of operation and flexibility. They handle a wide range of fluids including solvents, chemicals, slurries, gases, and utility services.

Engineering Standards

Common considerations include:

Proper sizing based on flow characteristics Selection of seat material compatible with media properties Actuation options for control and automation needs Corrosion-resistant construction for a long service life Their universal applicability makes them one of the most frequently installed valve types across process industries. Conclusion Ball valves continue to demonstrate versatility and reliability in applications in oil and gas, power plants, fertilizer production, food processing, pharmaceutical operations, and general process industries. Using principles of mechanical engineering-matters such as material compatibility, seat selection, and actuation integration-ball valves perform well in a stable and enduring manner. With their capacity to withstand fluctuating conditions and provide effective shutoff, they have become essential components in contemporary industrial systems.



How to Select the Right Ball Valve

 The selection of the appropriate ball valve represents an engineering decision that can directly affect plant reliability, safety, and efficiency. According to pharmaceutical, oil and gas, petrochemical, fertilizer, power generation, food processing, and general industries concerned with processes, selection should be based on matching media characteristics, pressure conditions, temperature limits, hygiene, and automation requirements. If all these parameters are carefully assessed, long-term performance and fewer maintenance problems will result.

Pressure Class Selection

Understanding Pressure Ratings

Ball valves are manufactured in several pressure classes like Class 150, Class 300, Class 600, and so on. Selection of the class will depend on the maximum allowable working pressure of the system.

Engineering Considerations

Mechanical engineers typically evaluate:

System design pressure

Temperature-pressure relationship defined by standards

Potential surge or transient pressures

Safety margins imposed by industry standards

In oil and gas and petrochemical plants, higher pressure classes are often needed to take care of hydrocarbons, steam, and gas compression systems. Pharmaceutical and food applications may rely on lower-pressure classes since their prime objective is usually hygiene and clean media.

Seat Type Selection

Soft Seats

Soft seats like PTFE, RPTFE, and PEEK are generally incorporated in many areas where clean media, low torque, and chemical compatibility are required. These kinds of seats find their applications in pharmaceuticals, biotech, food and beverage, and purified water systems.

Advantages of soft seats include :

Low friction

Tight sealing

Suitability for sanitary applications

Smooth running with low torque

Metal Seats

Applications that involve high pressure, high temperature, and abrasive service generally use metal-to-metal seats. They find typical applications in oil and gas pipelines, petrochemical reactors, fertiliser plants, and steam-based power generation systems.

Their advantages include:

High wear resistance

Ability to handle erosive fluids

Performance at extreme temperatures

Longer service life in harsh environments

Seat selection is one of the key factors for preventing leakage, improving operational consistency, and minimizing maintenance downtime.

Temperature Range Considerations

Temperature Effects on Valve Performance

Temperature affects expansion of material, seat behaviour, packing integrity and torque requirement. Thus, temperature compatibility is carefully assessed.

Engineering Evaluation Criteria

Engineers assess:

Maximum and minimum operating temperatures

Thermal cycling effects

Material expansion coefficients

Seat deformation risks

Power generation and petrochemical units also run at extreme temperatures; thus, their valve bodies have to be made from alloy steels, whereas seats are coated with carbide materials. In contrast, food-grade and pharmaceutical systems are mostly at moderate temperatures but require compatibility with sterilization cycles.

Actuation Requirements

Selection of Actuator: Importance

The increased automation of all industries makes the actuation of a valve an integral part of the selection. Ball valves lend themselves to pneumatic, electric, and hydraulic actuators because of their quarter-turn operation.

Engineering Criteria for Actuation

Mechanical engineers consider:

Required torque depending on pressure and seat material

Cycle frequency-manual or automated high-cycle operation

Fail-safe positions: either fail-open or fail-close

Environmental conditions: explosive zones, humidity, sanitation requirements

Precision requirements in process control

Oil and gas systems frequently utilize pneumatic and hydraulic actuators for shut-down applications. In pharmaceutical and food processing plants, electric actuators handle accurate flow control and automation of CIP/SIP sequences.

Material Compatibility at Final Selection

Long-Term Reliability and Safety

Material selection has remained a parallel factor in final valve decisions. Stainless steel is preferred in clean environments, while carbon steel and exotic alloys are applied to heavy-duty industrial operations. Engineers consider corrosion resistance, mechanical strength, and regulatory requirements before confirming the material grade.

Flow Characteristics and Sizing

Cv and Bore Type The flow coefficient Cv and the configuration of the bore-full or reduced-are important in valve performance. Full-bore designs minimize the pressure drop and, therefore, are preferred in clean media applications. Reduced-bore designs are used where cost efficiency or pressure regulation is required. Sizing ensures that pressure drop, flow rates, and actuation torque are kept within acceptable limits. Conclusion Ball valve selection is a structured engineering process that requires evaluation of pressure class, seat type, temperature limits, actuation needs, and material compatibility. By aligning each parameter with process conditions, ball valves deliver long-term reliability and sealing integrity across pharmaceutical, oil and gas, petrochemical, fertiliser, power generation, food processing, and broader process industries. A well-selected ball valve not only enhances operational safety but also reduces maintenance costs and ensures uninterrupted production.

Selecting the Right Trunnion Mounted Ball Valve for Industrial Applications

Choosing the correct valve is one of the most important decisions in any industrial piping system. In high-pressure, high-flow, or hazardous service environments, the wrong valve selection can lead to leaks, equipment damage, and costly downtime. Trunnion Mounted Ball Valves are designed specifically for these demanding conditions, but selecting the right model requires careful evaluation of operating parameters, materials, and design features.

Understanding Your Process Conditions

The first step in selecting a trunnion mounted ball valve is to clearly define the operating conditions. This includes working pressure, temperature range, flow rate, and the type of fluid being handled. Oil, gas, steam, corrosive chemicals, and cryogenic liquids all place different demands on valve materials and sealing systems.

For example, high-temperature hydrocarbons may require metal-seated valves, while aggressive chemicals demand corrosion-resistant materials and special seat designs. Accurate process data ensures that the valve will perform reliably throughout its service life.

Pressure Class and Valve Size

Trunnion mounted ball valves are commonly used in medium to very high pressure pipelines. Selecting the correct pressure rating (Class 150, 300, 600, 900, 1500, or 2500) is critical for safety and performance. The valve must be rated to handle not only normal operating pressure but also any potential pressure spikes.

Valve size should match the pipeline diameter and required flow capacity. An undersized valve can cause pressure loss and erosion, while an oversized valve may increase cost and reduce flow control accuracy.

Material Selection

Material choice plays a major role in valve reliability. Common body materials include carbon steel, stainless steel, duplex steel, and alloy steel, while special alloys are used for highly corrosive or high-temperature service.

Seat and seal materials must also be compatible with the process fluid. Soft seats such as PTFE provide excellent sealing for clean fluids, while metal seats are preferred for high temperature, abrasive, or dirty service.

End Connections and Standards

Trunnion mounted ball valves are available with various end connections, including flanged, butt-weld, and RTJ. The choice depends on pipeline design, pressure rating, and maintenance requirements. Welded ends are often used in high-pressure or permanent installations, while flanged valves allow easier replacement.

Ensure the valve meets applicable standards such as API 6D, ISO, and ASME, which guarantee proper design, testing, and safety compliance.

Safety and Performance Features

Modern trunnion mounted ball valves include a range of safety features that should not be overlooked. These include fire-safe design, blow-out proof stems, anti-static devices, and self-relieving seats. Each feature contributes to safe operation, especially in hazardous industries like oil and gas or chemicals.

Valves with low fugitive emission designs are also important for meeting environmental and workplace safety regulations.

Automation and Control

If the valve will be part of an automated system, select a model designed for actuator mounting. Trunnion mounted ball valves are ideal for automation due to their low and consistent operating torque. Electric, pneumatic, or hydraulic actuators can be fitted depending on system requirements.

Maintenance and Lifecycle Considerations

A high-quality trunnion mounted ball valve should provide long service life with minimal maintenance. Look for designs with replaceable seats and seals, easy access for inspection, and proven track records in similar applications.

Selecting the right Trunnion Mounted Ball Valve is a critical investment in safety, efficiency, and long-term reliability. By carefully evaluating operating conditions, materials, pressure ratings, and safety features, industries can ensure optimal performance and avoid costly failures. With the right selection, trunnion mounted ball valves become a dependable backbone of modern industrial flow control systems.

Engineering Excellence Behind Trunnion Mounted Ball Valve Design

 In industrial flow control, performance begins with engineering. When pipelines operate under high pressure, extreme temperatures, and continuous duty cycles, the design of the valve becomes a critical factor in system reliability. Trunnion Mounted Ball Valves are widely regarded as one of the most advanced valve designs available today, offering a combination of mechanical strength, sealing integrity, and long-term durability. Their superior performance is not accidental—it is the result of precision engineering and carefully selected materials.

Fixed Ball Construction for Structural Stability

Unlike floating ball valves, where the ball moves under line pressure, trunnion mounted valves use a fixed ball design. The ball is supported by trunnions at both the top and bottom, which hold it firmly in position. This structural support prevents unwanted movement when pressure rises, ensuring consistent alignment between the ball and the seats.

By eliminating ball shift, this design reduces stress on the stem and sealing surfaces, improving both safety and operational reliability. This stability is especially important in high-pressure and large-diameter pipelines where forces are extreme.

Advanced Seat Technology

One of the most important engineering features of trunnion mounted ball valves is their pressure-energized seat system. The seats are designed to move toward the ball rather than relying on ball movement to achieve sealing.

These seats are spring-loaded to provide tight sealing at low pressure and automatically use pipeline pressure to enhance sealing at higher pressures. This ensures bubble-tight shutoff across a wide range of operating conditions, even when pressure fluctuates.

Precision Machining and Tolerances

The effectiveness of a trunnion mounted ball valve depends heavily on machining accuracy. The ball, seats, stem, and trunnions must be manufactured to extremely tight tolerances. Any deviation can lead to misalignment, leakage, or increased torque.

Modern trunnion valves are produced using CNC machining and advanced inspection techniques to ensure smooth surface finishes, accurate dimensions, and perfect component fit. This level of precision results in lower friction, longer seal life, and smoother valve operation.

Material Selection for Harsh Environments

Trunnion mounted ball valves are used in industries where fluids may be corrosive, abrasive, or extremely hot or cold. To withstand these conditions, manufacturers select materials such as carbon steel, stainless steel, duplex steel, alloy steel, and special corrosion-resistant alloys.

Seat materials are equally important and may include PTFE, reinforced polymers, or metal seats for high-temperature and severe-service applications. These material combinations allow the valve to perform reliably in everything from cryogenic LNG systems to high-temperature refinery service.

Fire-Safe and Emission-Control Designs

Safety is built into every trunnion mounted ball valve. Many designs include fire-safe construction, which ensures that the valve can continue to seal even if soft materials are damaged by fire. Secondary metal seals engage automatically, maintaining isolation.

In addition, advanced stem packing and sealing systems reduce fugitive emissions, helping plants meet environmental and safety regulations while protecting workers.

Low Torque and Long Service Life

Because the ball remains fixed and the seats do the sealing work, trunnion mounted ball valves operate with lower and more consistent torque. This reduces wear on internal components and allows for easier manual or automated operation.

Lower friction also means less stress on actuators and gearboxes, extending the life of the entire valve assembly.

Designed for Automation

Modern industrial plants rely on automation for safety and efficiency. Trunnion mounted ball valves are ideal for automated systems because their stable torque and predictable movement allow for precise control using electric, pneumatic, or hydraulic actuators.

The superior performance of Trunnion Mounted Ball Valves is the result of careful engineering, precision manufacturing, and intelligent design. From fixed ball construction and pressure-energized seats to advanced materials and safety features, every element is optimized for reliability. These engineering advantages make trunnion mounted ball valves a trusted choice for high-pressure, high-risk, and mission-critical industrial applications.

Trunnion Mounted Ball Valves – The Backbone of High-Pressure Flow Control

In modern industrial piping systems, reliability is not optional — it is essential. When pipelines carry high-pressure fluids, gases, or corrosive chemicals, standard valve designs often struggle to maintain sealing integrity and operational stability. This is where Trunnion Mounted Ball Valves become a preferred solution. Designed to handle extreme pressure, heavy flow loads, and demanding operating conditions, these valves are widely used in oil & gas, petrochemical, power generation, and large-diameter pipeline networks.

What Is a Trunnion Mounted Ball Valve?

A Trunnion Mounted Ball Valve is a type of ball valve in which the ball is mechanically anchored at both the top and bottom by trunnions (support shafts). Unlike floating ball valves, where the ball moves to create sealing pressure, trunnion mounted designs keep the ball fixed while the seats move against the ball to achieve tight sealing.

This construction reduces operating torque and prevents the ball from shifting under high pressure, making the valve ideal for high-pressure, large-diameter, and continuous-duty applications.

Why Trunnion Design Is Superior for Heavy-Duty Applications

The biggest advantage of a trunnion mounted ball valve is load distribution. In high-pressure systems, enormous force pushes against the ball. In floating ball valves, this force transfers to the stem and seats, leading to wear and potential leakage.

In a trunnion design, this load is absorbed by the upper and lower trunnions, keeping the ball perfectly aligned. As a result:

• Stem stress is minimized

• Seat wear is reduced

• Torque remains low even at high pressure

• Sealing performance stays consistent over time

This makes trunnion mounted ball valves extremely reliable for critical services.

Self-Relieving Seats for Enhanced Safety

Trunnion mounted ball valves use spring-loaded or pressure-assisted seats. These seats move toward the ball to maintain a tight seal at low pressure and automatically adjust when pressure increases.

If excessive pressure builds up inside the valve cavity, the seats relieve pressure back into the pipeline, preventing dangerous over-pressurization. This self-relieving feature adds an extra layer of safety, especially in oil, gas, and chemical processing plants.

Typical Applications

Trunnion mounted ball valves are widely used in:

• Crude oil and natural gas pipelines

• Refinery process units

• Petrochemical plants

• LNG and gas transmission systems

• Power generation facilities

• Offshore platforms

• High-pressure water and steam systems

These industries rely on trunnion mounted valves because failure is not an option in such environments.

Key Performance Benefits

Trunnion mounted ball valves provide several technical advantages:

Low operating torque – Actuators and gearboxes work efficiently
Bubble-tight shut-off – Even under extreme pressure
Long service life – Reduced wear on internal components
Fire-safe design – Meets international safety standards
Minimal maintenance – Reliable sealing for years

These features translate into lower operational costs and improved plant safety.

Design Standards and Compliance

High-quality trunnion mounted ball valves are designed and tested according to international standards such as:

• API 6D

• ISO 17292

• ASME B16.34

• Fire-safe certifications

• Fugitive emission standards

Compliance ensures that the valve performs safely even in hazardous environments.

When systems operate under high pressure, high temperature, or continuous flow, valve performance directly affects plant safety and productivity. Trunnion Mounted Ball Valves provide unmatched strength, stable operation, and long-term reliability. Their ability to maintain tight shut-off with low torque makes them a cornerstone of modern industrial flow control.
